Air Cooled Oil Cooler Manufacturer in North America
Air Cooled Oil Cooler Manufacturer in North America
Looking for an air cooled oil cooler for your industrial or hydraulic system? Choosing the right cooler can help control oil temperature, protect critical components, and reduce unexpected equipment downtime. For manufacturers, maintenance teams, OEMs, and industrial equipment buyers across North America, the right cooling solution starts with understanding the machine's heat load, operating conditions, and performance requirements.
Hydraulic and Pneumatic Products (HPP) supports businesses exploring hydraulic and pneumatic product solutions. If you are sourcing an air cooled oil cooler for new equipment, an existing hydraulic system, or a replacement project, understanding your technical requirements can help you identify a suitable solution for your application.
Need help identifying the right oil cooler? Contact HPP to discuss your application and confirm available product options.
Our Air Cooled Oil Cooler Range
Explore offline cooling systems and air cooled oil coolers engineered for hydraulic power units and industrial machines.

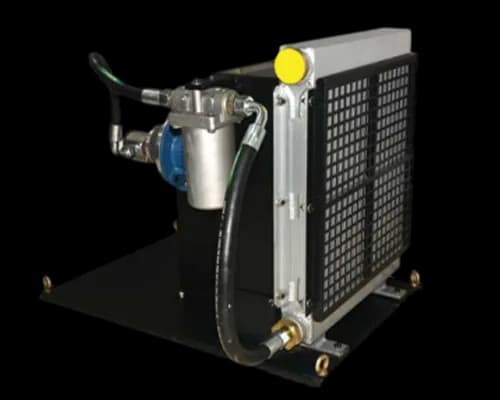

Offline Cooling System for Cement Plant
Offline Cooling System for Automobile Industry
Offline Cooling System for Gearbox

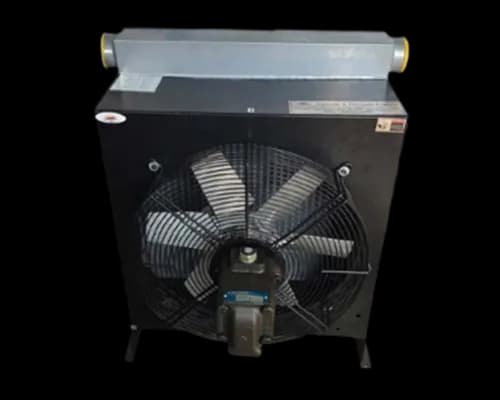

Air-Cooled Oil Cooler with Hydraulic Motor for Moving Vehicles

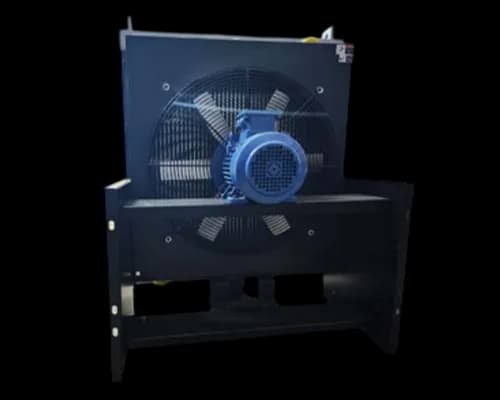

Air-Cooled Oil Cooler for Stone Crusher Machines

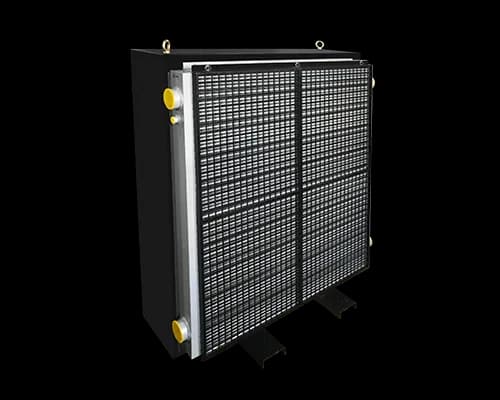

Air Cooled Oil Cooler for Stone Crushers Machines
Find the Right Air Cooled Oil Cooler for Your Application
Hydraulic systems generate heat as pumps, valves, cylinders, and other components operate. When heat builds up faster than the system can dissipate it, oil temperature can rise beyond the recommended operating range. This may affect fluid viscosity, component performance, seals, and overall equipment reliability.
An air cooled oil cooler removes excess heat by transferring it from the oil to the surrounding air. Depending on its design and cooling capacity, it can help maintain more consistent operating temperatures without requiring a separate water-cooling supply.
For North American industrial operations, selecting the right cooler means looking beyond the purchase price. Cooling capacity, airflow, pressure drop, installation space, and maintenance requirements all influence long-term performance.
Why Choose an Air Cooled Hydraulic Oil Cooler?
An appropriately sized air cooled hydraulic oil cooler can support reliable equipment operation in applications where effective thermal management is essential.
- Better temperature control: Helps keep hydraulic oil within the recommended operating range.
- Equipment protection: Helps reduce heat-related stress on compatible hydraulic components.
- Reduced overheating risks: Supports thermal management during demanding operating cycles.
- Practical installation: Can be suitable for industrial and mobile applications where a cooling water supply is not preferred or available.
- Simplified routine maintenance: Accessible cooling surfaces can be inspected and cleaned to help maintain airflow.
Actual performance depends on system design, ambient temperature, cooler specifications, and operating conditions. An oil cooler also cannot resolve every overheating problem, so the underlying cause should be assessed before selecting a replacement.
Air Cooled Oil Cooler Applications
The right cooler depends on the equipment, fluid, heat load, and operating environment. Air cooled oil coolers may be used in a variety of compatible applications, including:
- Hydraulic Power Units: Help manage oil temperature in industrial hydraulic circuits.
- Manufacturing Equipment: Support temperature control in machinery used for production and material processing.
- Hydraulic Presses: Help dissipate heat generated during repeated operating cycles.
- Construction and Mobile Equipment: Support cooling requirements in compatible hydraulic systems.
- Gearboxes and Lubrication Systems: Help remove excess heat from suitable oil circulation applications.
- OEM Equipment: Can be considered during the design of new machinery when cooling capacity, available space, and operating conditions are clearly defined.
Before ordering, confirm that the cooler is suitable for the specific fluid and circuit in which it will be installed.
How to Select the Right Industrial Oil Cooler
Choosing an undersized cooler can leave a system running too hot, while an unsuitable design can create installation or pressure-drop problems. Use these factors to narrow down your options.
1. Determine the Required Cooling Capacity
Estimate the heat that the cooler must remove during normal and peak operation. Do not select a cooler based on equipment horsepower alone; actual heat generation and duty cycle matter.
2. Check Oil Flow and Operating Pressure
Provide the required oil flow rate, maximum working pressure, and allowable pressure drop. These specifications help determine whether a cooler is compatible with your hydraulic circuit.
3. Consider Ambient Temperature
The highest expected ambient temperature affects the cooler's ability to transfer heat to the air. Equipment operating in hot environments may require a different cooling capacity than machinery used in climate-controlled facilities.
4. Confirm Dimensions and Connections
Check available mounting space, inlet and outlet connections, airflow clearance, and electrical requirements for fan-powered models. This is particularly important when replacing an existing cooler.
5. Evaluate Maintenance and Service Requirements
Consider access for cleaning, fan inspection, and routine servicing. In dusty industrial environments, restricted airflow can reduce cooling performance.
Not sure which specifications you need? Share your equipment details with HPP to discuss the application and confirm which available options may be suitable.
Why Work With Hydraulic and Pneumatic Products (HPP)?
Selecting an industrial oil cooler is a technical purchasing decision. Buyers need to understand whether a product meets their cooling requirements, fits their equipment, and can be supplied within their project timeline.
Hydraulic and Pneumatic Products (HPP) is a contact point for businesses exploring hydraulic and pneumatic products. When discussing your requirements, provide your application details, operating temperatures, oil flow, pressure, and installation dimensions to help establish the appropriate product specifications.
Before placing an order, confirm the available cooler models, technical documentation, compatibility, warranty terms, shipping options, and support services directly with HPP.
Whether you are planning a new installation or evaluating a replacement, clear technical requirements can help make the purchasing process more efficient.
Request an Air Cooled Oil Cooler Quote
Need an air cooled oil cooler for your hydraulic equipment or industrial application? Start by identifying your system's cooling requirements rather than choosing a unit based on size or price alone.
Contact Hydraulic and Pneumatic Products (HPP) to discuss your application and request information about suitable available products.
To help assess your requirements, include:
- Equipment type and application
- Required oil flow rate and operating pressure
- Oil inlet temperature and target outlet temperature
- Maximum ambient operating temperature
- Available mounting dimensions and connection details
- Required quantity and delivery location
Request a Quote Today and take the next step toward finding an air cooled oil cooler that meets your application's technical requirements.
Frequently Asked Questions
Compare manufacturers and suppliers based on cooling capacity, technical specifications, application compatibility, product availability, and support. Contact HPP to confirm its available oil cooler options and North American supply capabilities.
